Triple clamps

Posted by Will on Feb 28, 2015 in Machine Work

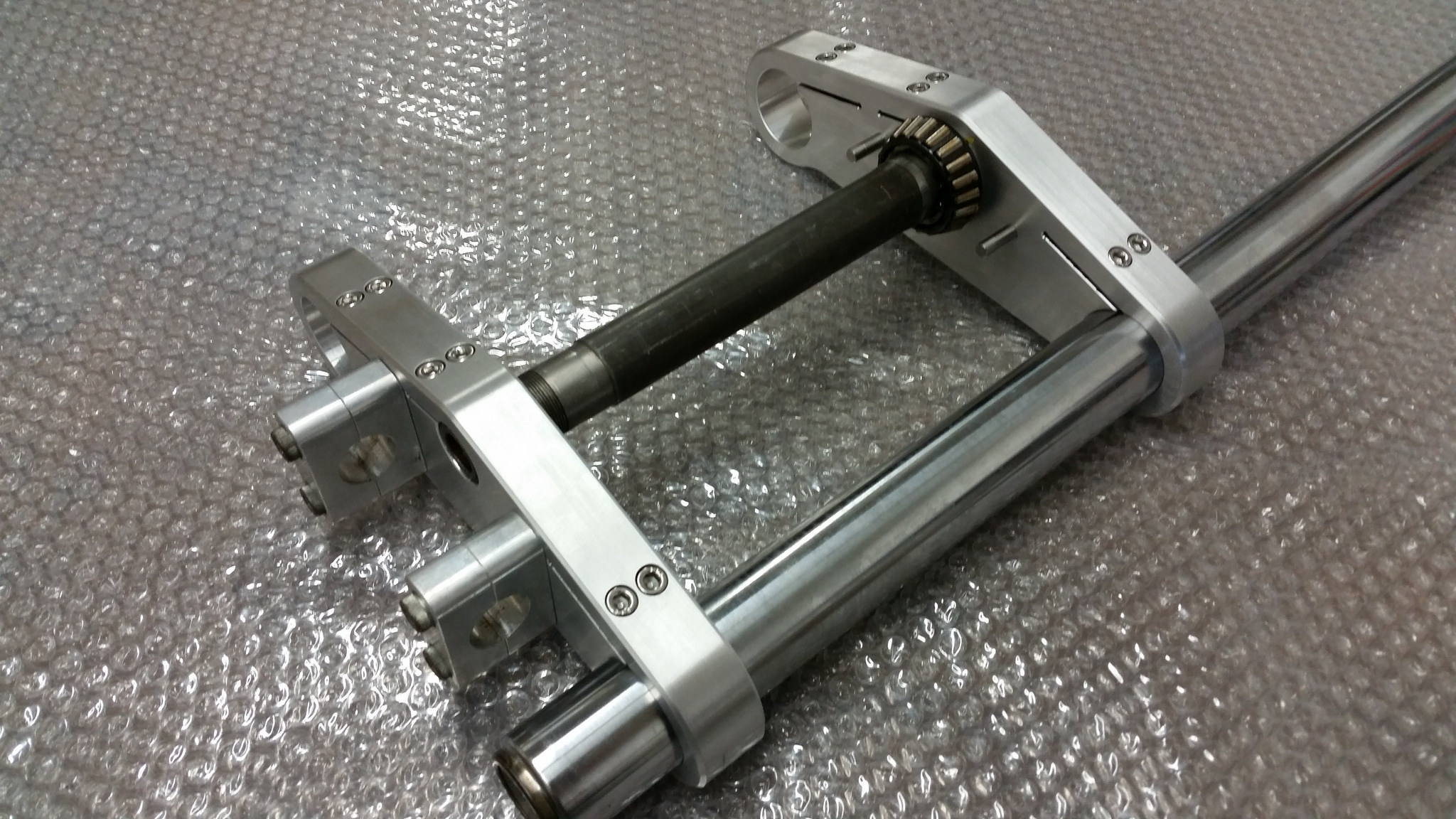

Triple clamps with handle bar mounts and one fork tube.

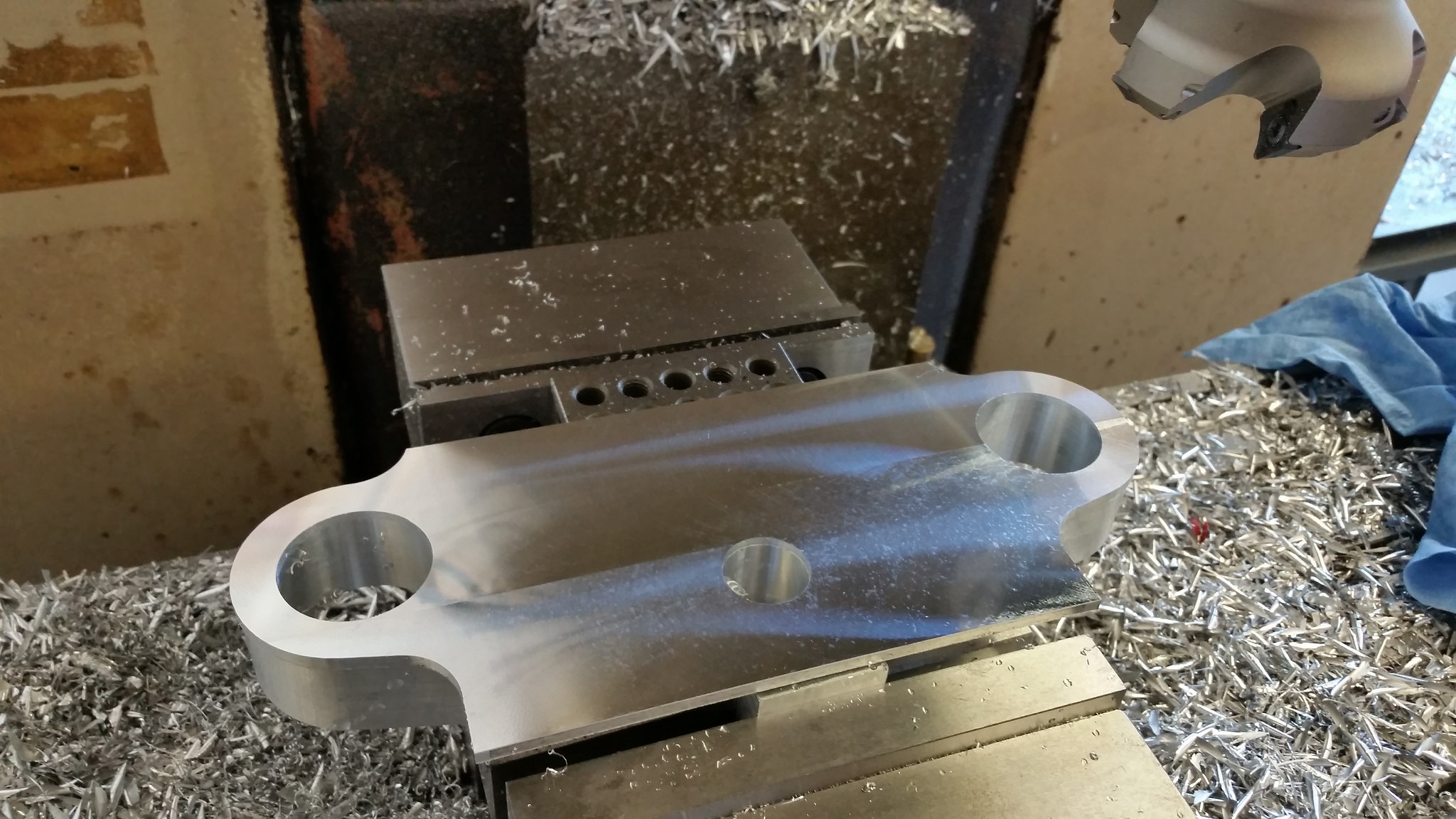

First operation complete.

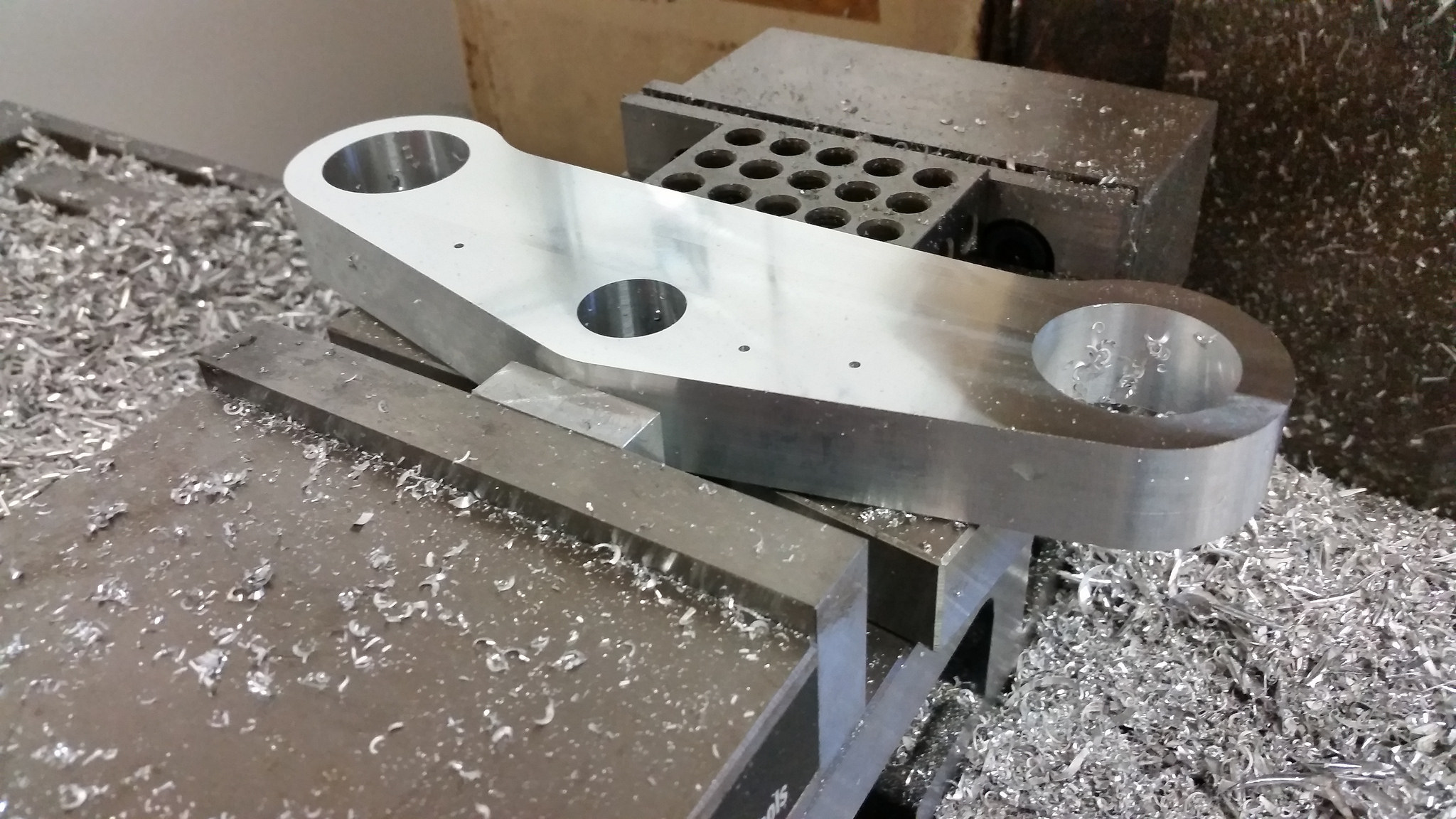

Flipped and ready for second operation.

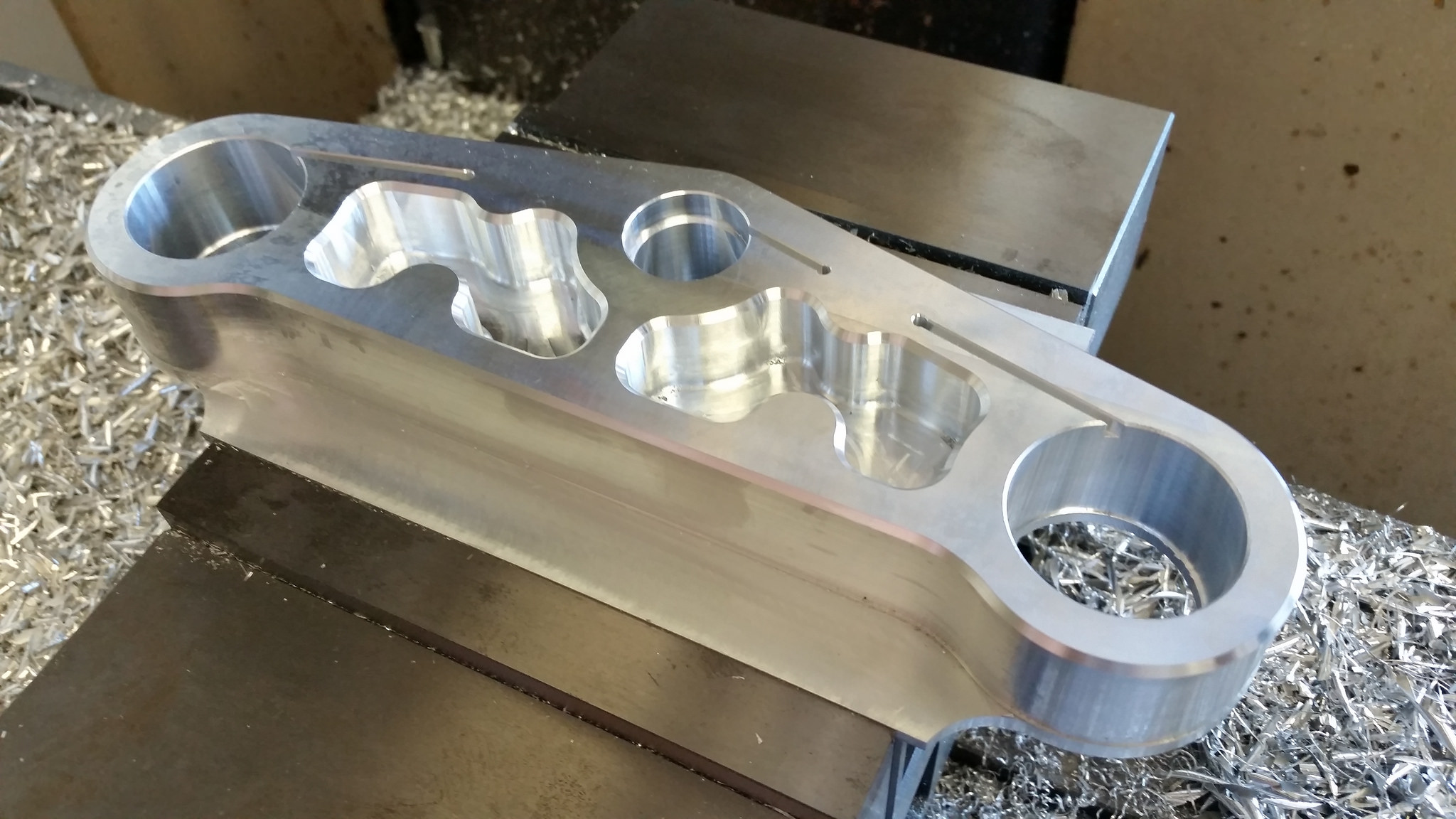

Midway through second operation.

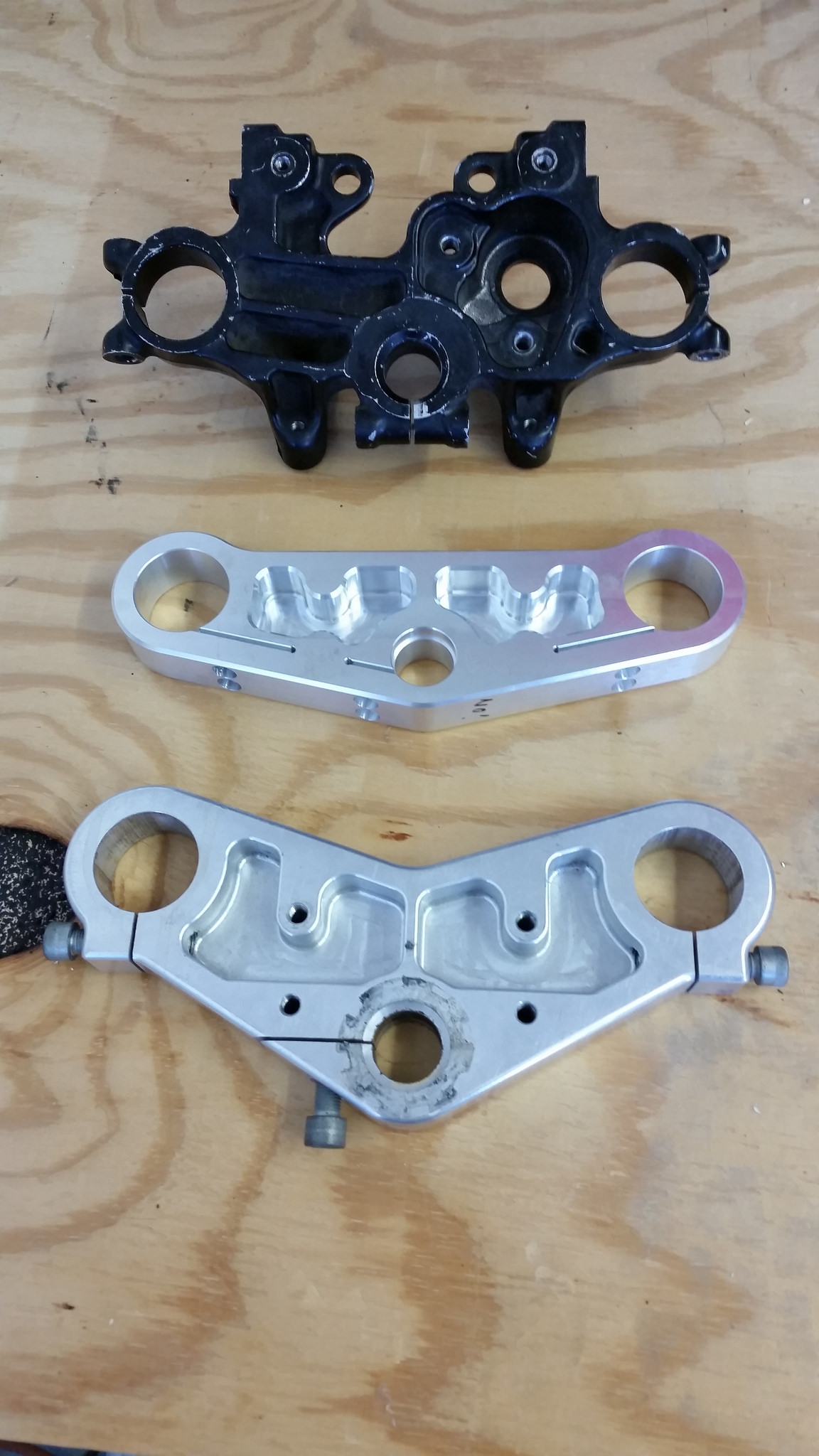

Geometry of new triple clamp (center) is a combo of stock (top) and aftermarket (bottom).

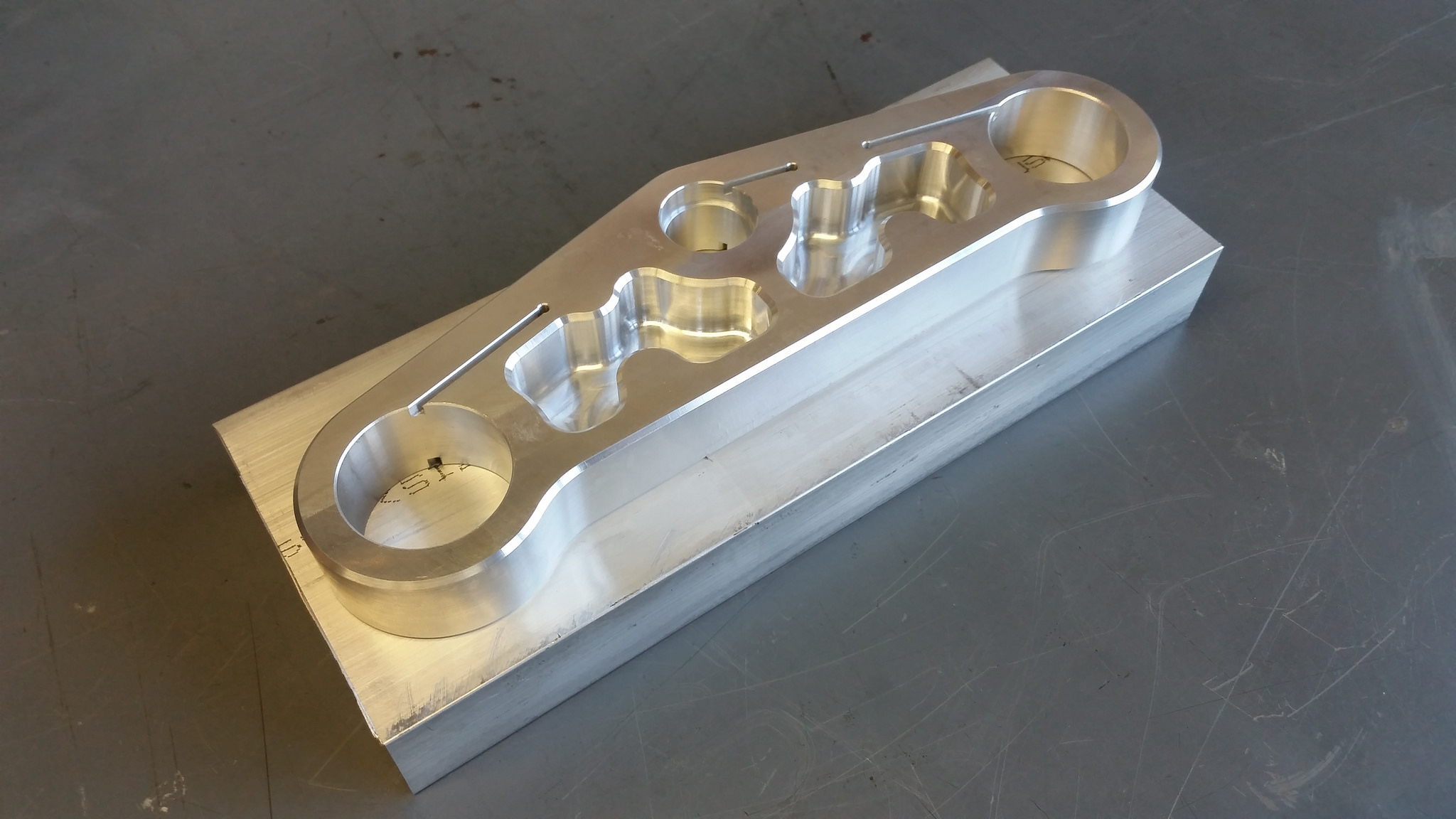

Triple clamp on top of aluminum bar stock.
