CNC Probe

I wanted to add the capability to probe to our CNC milling machine. I looked at the 3D taster style indicator which I have used on a manual machine but for less money I thought I could set up an electronic probe that would find edges and surfaces but could also easily locate hole centers and do point cloud probing of 3D surfaces.

I purchased some two used Renishaw probe heads plus an optical transmitter. Renishaw invented this style of probe. Since this machine has limited Z travel I ditched the optical transmitter and mounting plate and set out to fabricate my own mounting plate that would also hold a connector to wire to the machine controller.

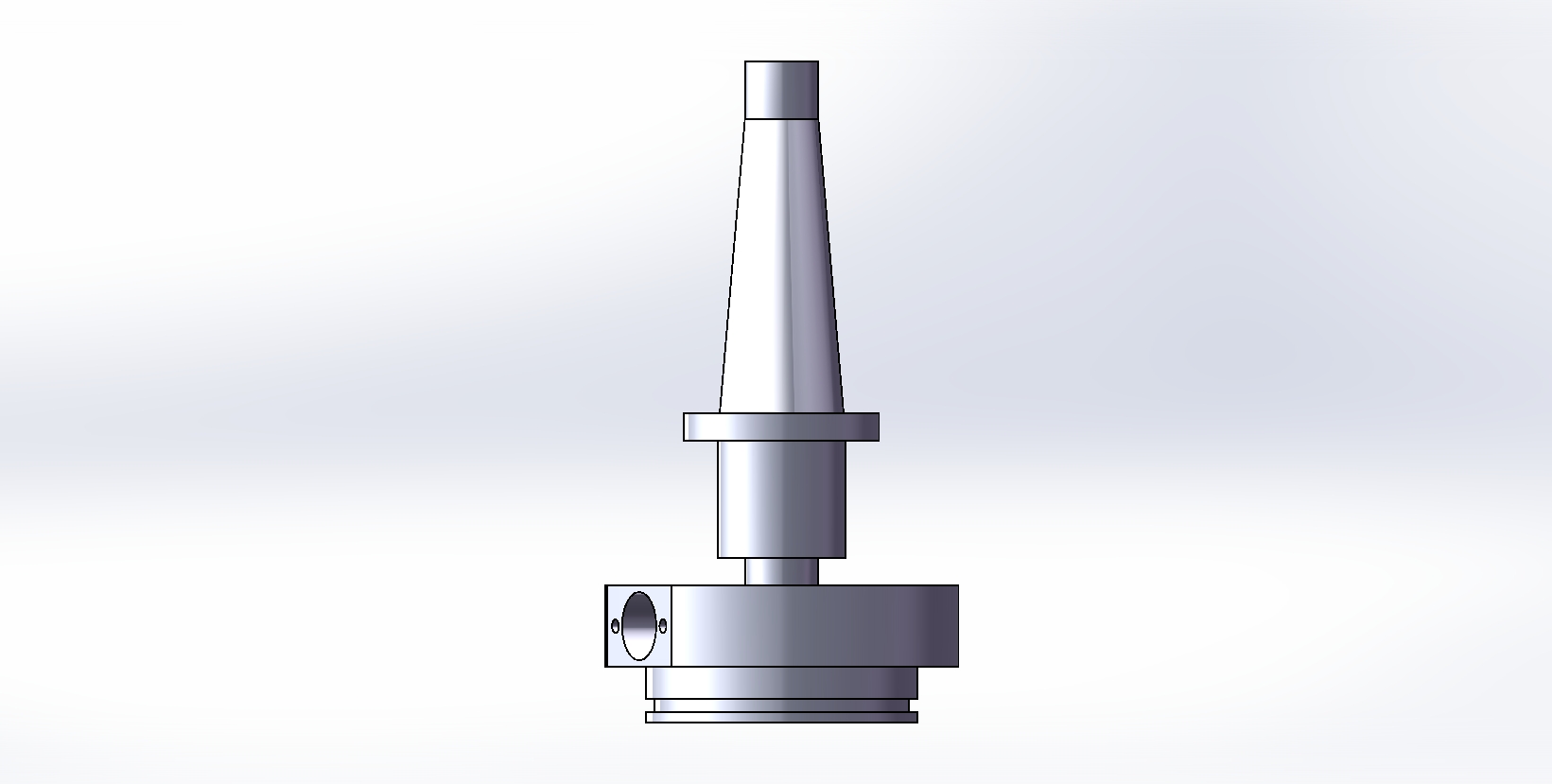

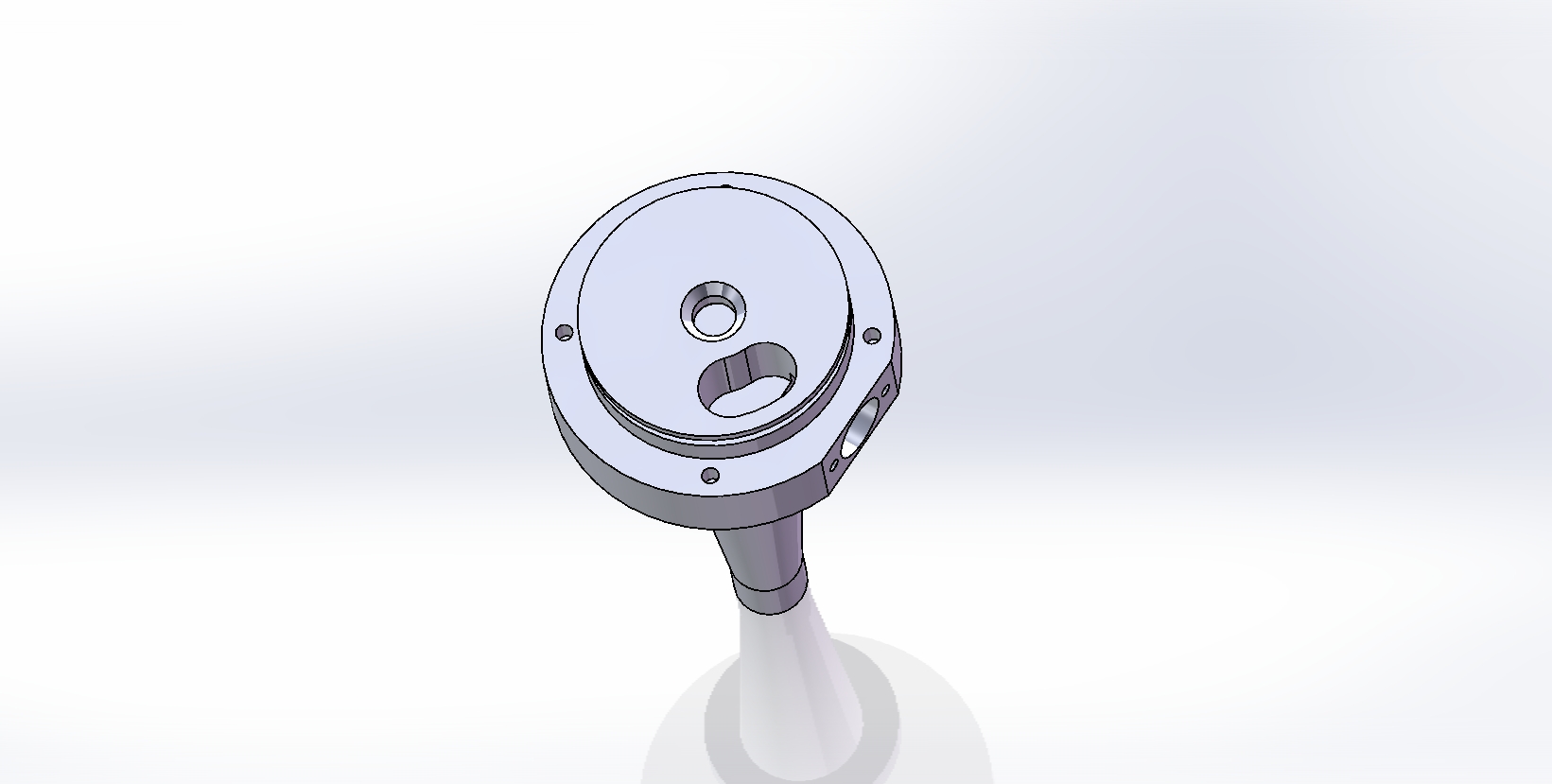

Solidworks model of the tool holder and mounting plate:

probe-cad2

probe-cad

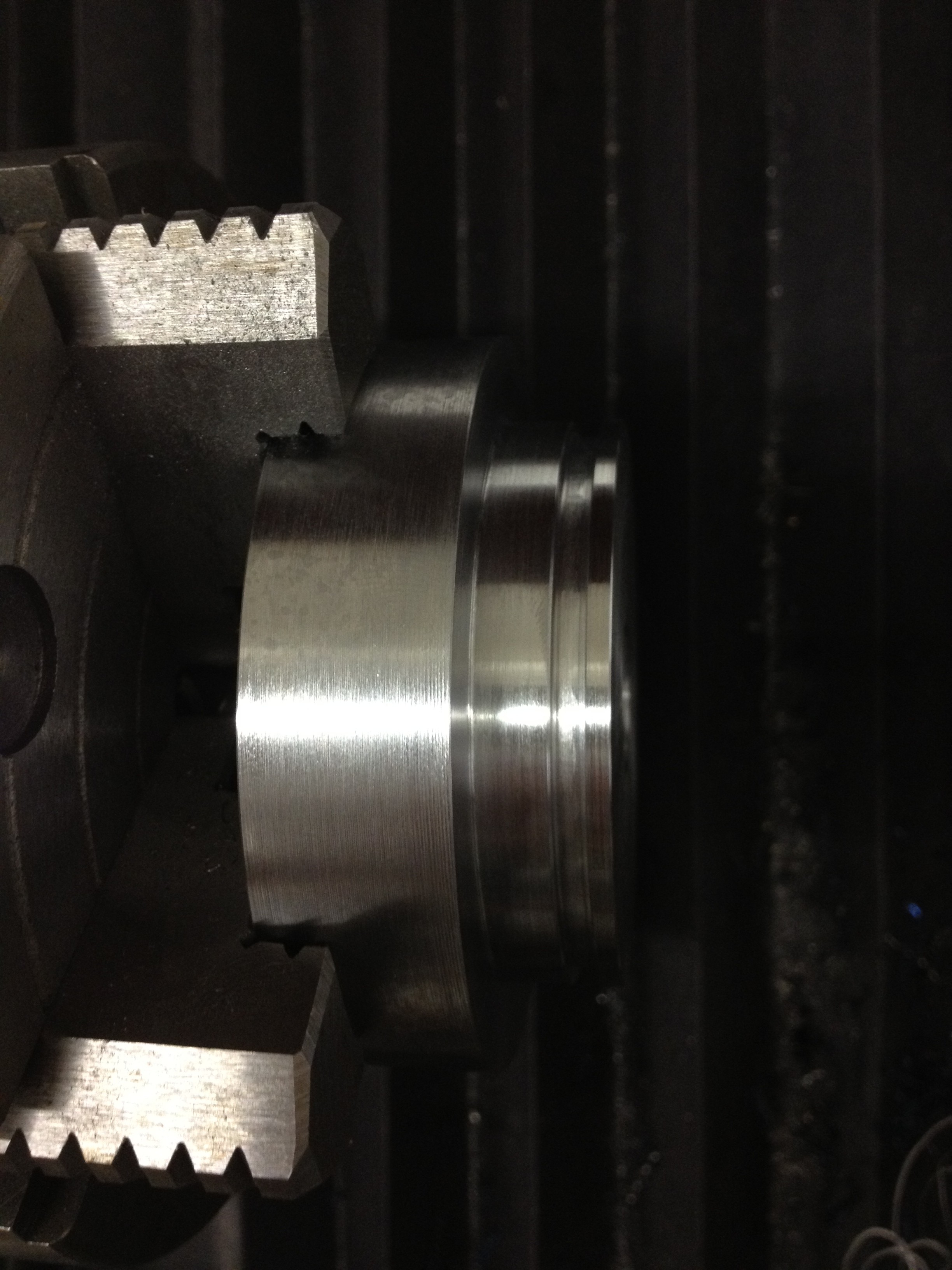

Lathe work:

2_7_13-012-e1360374934513

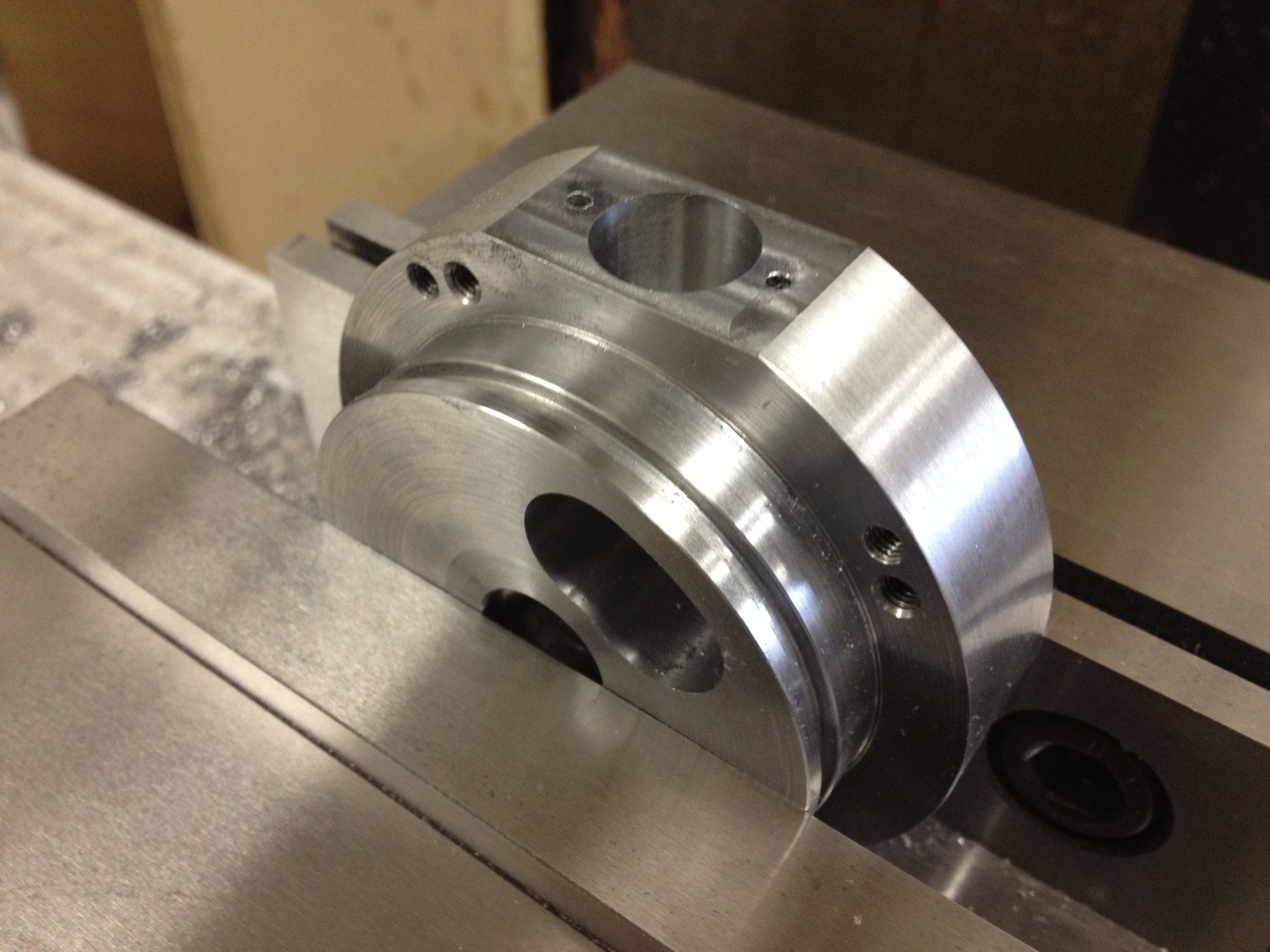

Machining for connector to machine controller:

2_7_13-004

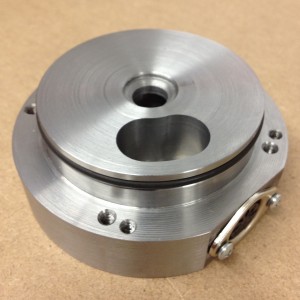

Finished adapter plate:

2_7_13-0101-e1361293433139

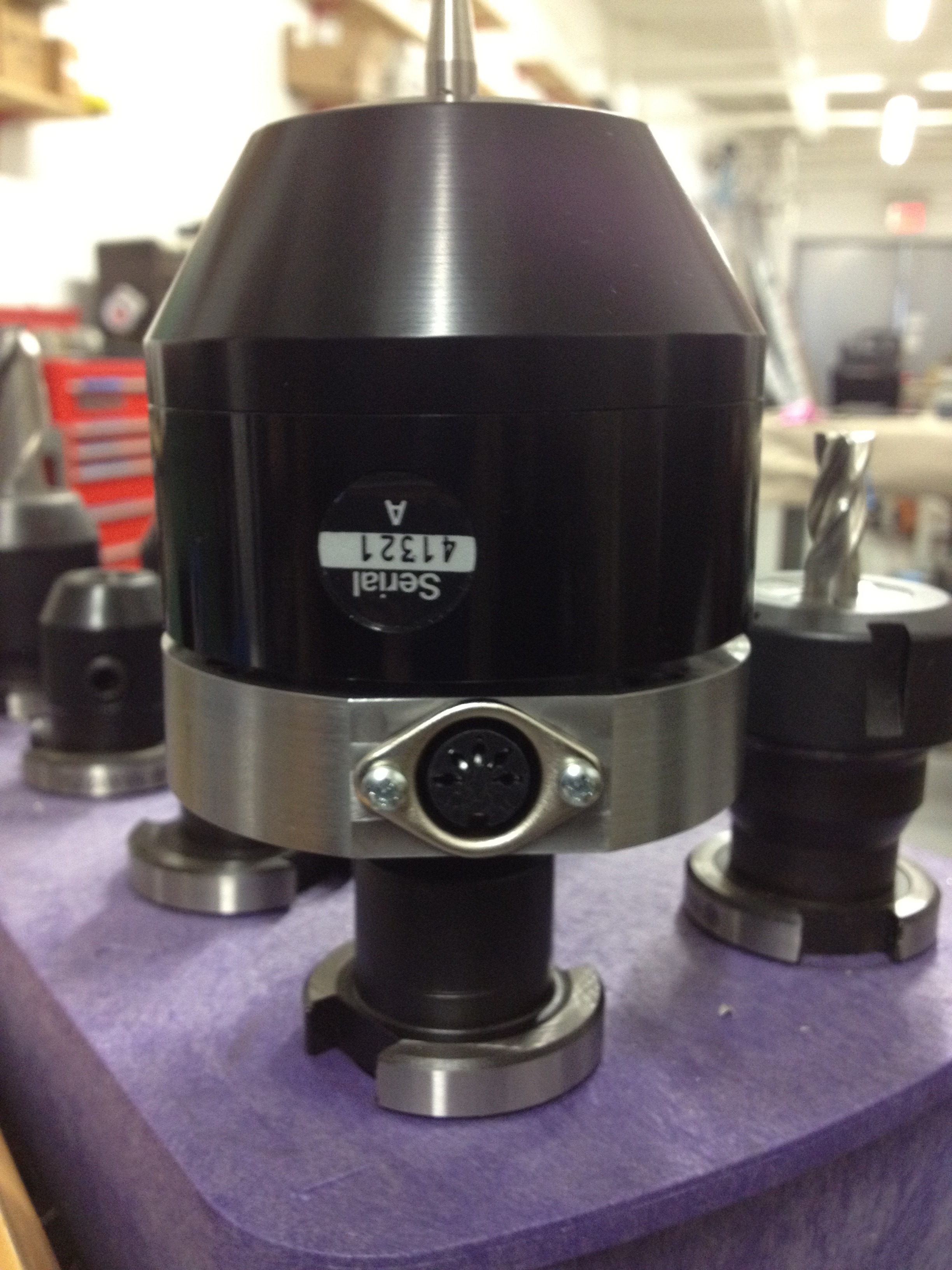

Finished assembly. Tool holder, adapter plate, and Renishaw probe head.

2_7_13-009-e1360375027346
